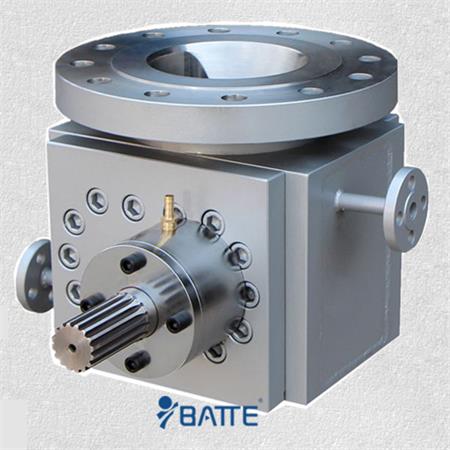

Booster metering pump(ZB-F)
Booster metering pump is used for transportation, pressurization or the metering of the Metering extrusion pump and high viscosity polymer melt pump. Metering extrusion pump for reaction kettle is mainly used for transporting medium or high viscosity melt out of the vacuum reaction kettle. Batte metering pump extruder molten material displacement can be precisely controlled by the speed of the pump.

Booster metering pump(ZB-F)

Metering Extrusion PumpTechnical Parameter:
Metering extrusion pump body: stainless steel, carbon steel, hastelloy, monel
Gear: tool steel, nitrided steel, special material and wear-resistant coating
Tooth profile: Straight tooth, Helical tooth, Herringbone tooth
Sliding Bearing: tool steel, Ti-Ta alloy, silver-nickel, special material and wear-resistant coating
Shaft Sealing: mechanical seal, Screw sealing+Packing seal, flushing fluid combined sealing
Heating System: Conduction oil heating, Biphenyl gas

Pump Model
Pump Volume (CC)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.6
0.6
0.37
0.5







≤400℃(750°F)




Outlet Pressure:  ≤ 40Mpa(6,000psi)

Outlet Differential Pressure: ≤ 275bar

ZB-1.2
1.2
0.75
0.5
ZB-2
2
0.75
1
ZB-5
5
1.1
2
ZB-10
10
1.5
2
ZB-20
20
2.2
2
ZB-31.5
32
3
2
ZB-50
50
4
3
ZB-100
100
5.5
4
ZB-150
150
7.5
5
ZB-90/90
200
11
6
ZB-100/100
250
15
8
ZB-100/100
315
18.5
8
ZB-115/115
500
22
12
ZB-130/130
800
30
15
ZB-160/160
1200
37
20
ZB-180/160
2500
45
24
ZB-180/180
3200
55
24
ZB-224/224
6000
75
30


Metering Extrusion Pump For Reaction Kettle Features:
Stabilizing outlet pressure;
Improving the products quality;
Increasing the extrusion output;
Reducing unit energy consumption;
Prolonging the service time of extruder.

Metering Extrusion Pump For Reaction Kettle Applications:
Extrusion pump for the chemical industry, chemical fiber, petroleum, food industry, biotechnology, pharmaceutical and other industries. Such as: polyester, high-strength polyethylene, rubber, food, medicines, adhesives, polyols, petroleum and other industries. With the development of the machinery industry, extrusion gear pumps market is gradually being adopted by the industry, the application.
