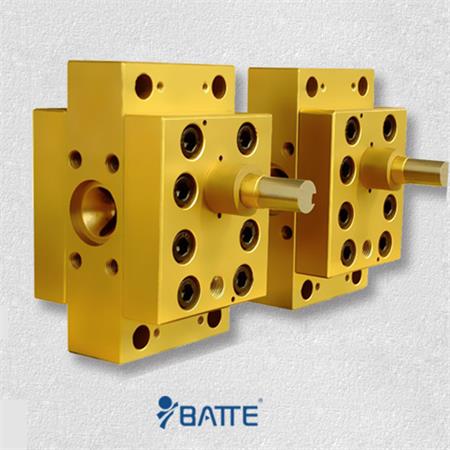

Polymer extrusion melt pump(ZB-H)
Polymer extrusion melt pump is a type of extrusion pump for polymer, Which delivery high temperature and high pressure melt pump, as compared with conventional polymer extrusion gear pump with respect to the complex structure, this extrusion pump with gear and shaft into one, using self-lubricating system, to achieve its lubricating function and use packing boxes combined mechanical seal sealing manner.

Polymer extrusion melt pump(ZB-H)

Extrusion Pump For Ploymer Features:

1.significantly increase die pressure stability, improve product quality;
2.can achieve near-linear output flow, easy to control;
3.extrusion rate increased, while reducing the extrusion machine load, save energy and reduce costs.
4.pressure flow pulsation;
5.high wear resistance, long life;
6.high precision machining, structural precision.

High Temperature And High Pressure Melt Pump Technical Parameter:

Melt Pump Body: CPM stainless steel, Ti-Ta alloy
Gear: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
Sliding Bearing: CPM stainless steel, Ti-Ta alloy, special material and wear-resistant coating
Shaft Sealing: Screw sealing
Heating System: Electrical heating

High Temperature And High Pressure Melt Pump Operating Parameter:

Theory: Positive Displacement Gear Pump
Structure: Gear Pump
Usage: Plastic, Rubber Pump and Fiber
Power: Electric or Oil
Fuel: No Need
Volume Range: 5CC - 3200CC
Viscosity: ≤20000 Pas
Working Temperature: ≤510°C(950°F)
Cleaning Temperature: ≤590°C(1100°F)
Outlet Pressure:≤70Mpa
Differential Pressure: ≤50Mpa

Pump Model
Pump Volume (CC)
Capacity (L/H)
Driven Power (kw)
Heating Power (kw)
Working Temperature
Working Pressure
ZB-0.1
0.1
0.05-0.2
0.2
1







≤400℃(750°F)




Outlet Pressure:  ≤ 350Mpa

Outlet Differential Pressure: ≤ 275bar

ZB-0.5
0.5
0.25-1
0.37
1
ZB-1
1
0.5-2
0.55
1
ZB-2
2
1-4
0.75
1
ZB-5
5
2.5-10
1.1
2
ZB-10
10
5-20
1.5
2
ZB-20
20
10-40
2.2
2
ZB-31.5
32
16-60
3
2
ZB-50
50
25-100
4
3
ZB-100
100
50-200
5.5
4
ZB-150
150
75-300
7.5
5
ZB-90/90
200
100-400
11
6
ZB-100/100
250
125-500
15
8
ZB-100/100
315
150-300
18.5
8
ZB-115/115
500
200-1000
22
12
ZB-130/130
800
400-1600
30
15
ZB-160/160
1200
600-2400
37
20
ZB-180/160
2500
1250-5000
55
20
ZB-180/180
3200
1600-6400
55
24
ZB-224/224
6000
3000-6000
75
30

Polymer Extrusion Melt Pump Applications:
Polymer extrusion gear pumps suitable for high temperature and high viscosity of the polymer melt conveying, pressurization, measurement, mainly used in polymer extrusion, such as pelletizing, film, pipe, plate, sheet, etc., generally installed between the extruder outlet and the head can also be installed in the pipeline used to transport high-viscosity pure material. High viscosity can be used for PA PB PC PE PS HIPS ABS PP PET PVA and other polymer materials, can also be used to transport rubber, asphalt, paint, adhesives, dyes, paints, lubricants, polyol free of particulate impurities materials.
