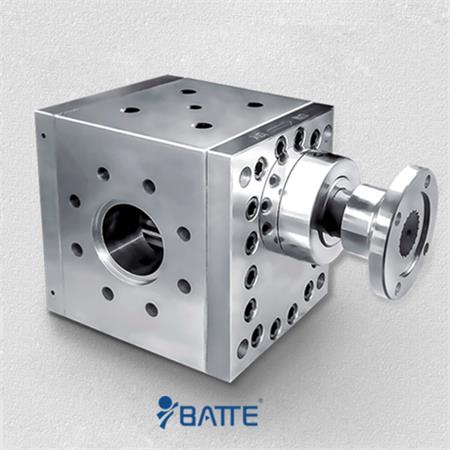

Plastic extrusion pump(ZB-B)
Plastic extrusion pump is a type of extrusion pump for plastics.The plastic extrusion pump belongs to displacement gear pump, using a combination of external tooth cylindrical gears (spur, helical, herringbone tooth) relative rotation of transport hot plastic melt from the plastic pump extruder.

Plastic extrusion pump(ZB-B)

ZB-B Plastic Extrusion Pump Technical Parameters:
Melt Pump Body: High Temperature Tool Steel or Stainless Steel
Gear: M2 Steel (Optional)
Sliding Bearing: High Temperature Tool Steel or Stainless Steel
Shaft Sealing: Double Spiral Sealing
Heating System: Electrical Heating

ZB-B Plastic Extrusion Pump Operating Parameter:
Theory: Positive Displacement Gear Pump
Structure: Gear Pump
Power: Electric or Oil
Fuel: No Need
Pressure: High Pressure
Volume Range: 0.5CC - 3200CC
Viscosity: ≤40000 Pas
Working Temperature: ≤400°C (750°F)
Cleaning Temperature: ≤450°C (850°F)
Outlet Pressure: 40MPa(6000psi)
Differential Pressure: ≤25Mpa

Type
CC/Rev
Capacity (L/H)
Heating power (kw)
Driven system (km)
ZB-0.2
0.2
0.1-0.6
0.5
0.37
ZB-1
1
0.5-3
1
0.5
ZB-2
2
1-6
1
0.75
ZB-5
5
2.5-15
1
1.1
ZB-10
10
5-30
1
1.5
ZB-20
20
10-60
2
2.2
ZB-31.5
31.5
15-90
2
3
ZB-50
50
25-150
3
4
ZB-100
100
50-300
4
5.5
ZB-150
150
75-450
5
7.5
ZB-200
200
100-600
6
11
ZB-250
250
125-750
8
15
ZB-315
315
150-900
8
18.5
ZB-500
500
250-1500
12
22
ZB-800
800
400-2400
15
30
ZB-1200
1200
600-3600
20
37
ZB-2500
2500
1300-7500
24
45
ZB-3200
3200
1600-9600
24
55
ZB-6200
6200
3000-18000
30
75


Extrusion Pump For Plastics Applications:
Plastic extrusion screw pumps are widely used in plastics, resins, rubber and chemical products extrusion. Such as: granulation, film, pipe, plate, sheet, synthetic fibers, fiber optics, medical plastic catheters and other industries.
Batte Machinery Zhengzhou Co.,Ltd. is one of the biggest manufacturer of extrusion gear pumps in China. Being a professional supplier for pump products, we have been accumulating adequate experience on the application-specific technique.
